Während Arbeiten an der Elektrik ist es oft schwierig, den Kabelverlauf im Fahrzeug zu verfolgen. Deswegen habe ich hier die Tabelle der Kabelfarben des Lancia Dedra (vielleicht FIAT/ALFA/LANCIA allgemein?) eingestellt. Dies hilft auch bei Arbeiten mit der Werkstattanleitung bzw. Originalschaltplänen
Wo es möglich war, habe ich die Bedeutung des Kabels und die italienische Farbbezeichnung dazugemacht.
Außerdem habe ich noch eine Grafik hinzugefügt, welche die Relaisübersicht des Hauptverteilers abbildet.
Abk. deutsch italienisch Bedeutung
A hellblau azzuro chiaro
B weiß bianco
C orange arancione
G gelb giallo
H grau grigio ?
L blau azzuro / blu / celeste
M braun marrone
N schwarz nero Masse (Minuspol der Batterie, Karrosserie)
R rot rosso +12V Dauer (Pluspol der Batterie)
S rosa rosa
V grün verde
Z violett viola
AB hellblau - weiß azzuro chiaro - bianco
AG hellblau - gelb azzuro chiaro - giallo
AN hellblau - schwarz  azzuro chiaro - nero
AR hellblau - rot azzuro chiaro - rosso
AV hellblau - grün azzuro chiaro - verde
BG weiß - gelb bianco - giallo
BL weiß - blau bianco - celeste
BN weiß - schwarz bianco - nero
BR weiß - rot bianco - rosso
BV weiß - grün bianco - verde
BZ weiß - violett bianco - viola
CA orange - hellblau arancione - azzuro chiaro
CB orange - weiß arancione - bianco
CN orange - schwarz arancione - nero
GN gelb - schwarz giallo - nero
GL gelb - blau giallo - celeste
GR gelb - rot giallo - rosso
GV gelb - grün giallo - verde
HG grau - gelb grigio - giallo
HN grau - schwarz grigio - nero
HR grau - rot grigio - rosso
HV grau - grün grigio - verde
LB blau - weiß celeste - bianco
LG blau - gelb celeste - bianco
LN blau - schwarz celeste - nero
LR blau - rot celeste - rosso
LV blau - grün celeste - verde
MB braun - weiß marrone - bianco
MN braun - schwarz marrone - nero
NZ schwarz - violett nero - viola
RB rot - weiß rosso - bianco
RG rot - gelb rosso - giallo
RN rot - schwarz rosso - nero
RV rot - grün rosso - verde
SN rosa - schwarz rosa - nero
VB grün - weiß verde - bianco
VN grün - schwarz verde - nero
VR grün - rot verde - rosso
ZB violett - weiß viola - bianco

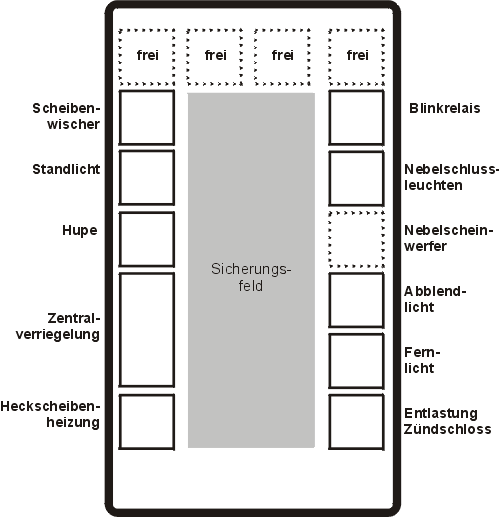

Übersicht des Hauptverteilers:
Sicherungskasten Lancia Dedra
